Deneb – angle bracket

Angle bracket Deneb
ANGL-WOCON-DENEB-222X117X117X2

Art.-no. 5390000300

EAN 4062856577354

All versions

Price for selected packaging unit
Deneb – angle bracket

Art.-no. 5390000300

Price for selected packaging unit
Quantity
PU
x 10 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

The Deneb push and pull bracket is ideal for connecting wooden constructions to concrete and wooden substructures
  • High rigidity due to integrated stiffeners and beads

  • High variability in the choice of fixings

  • Versatile options for screw fittings are set out in the ETA-20/0773

  • High load-bearing capacity
Proof of Performance

CE labelling as per European Technical Assessment ETA-20/0773

Application area

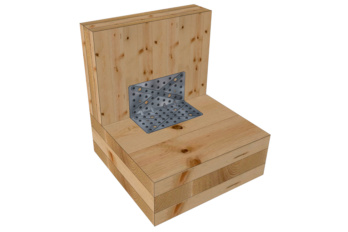

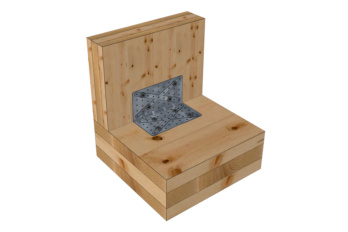

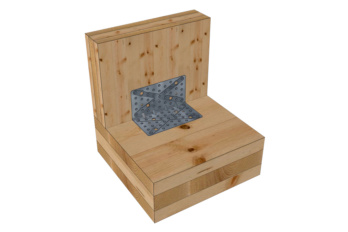

Deneb angle bracket with 8 x ASSYplus 4 Combi FT diameter 12 x 160 mm
Deneb angle bracket with 8 x ASSYplus 4 CS FT diameter 6 x 200 mm with angled washer
Deneb angle bracket with 70 x ASSY 4 JH diameter 5 x 70 mm
Deneb angle bracket with 18 x ASSY 4 JH diameter 5 x 70 mm + 8 ASSYplus 4 Combi FT diameter 12 x 160 mm
Deneb angle bracket 70 x anchor nail diameter 4 x 60 mm
Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Application area
  • Cross-laminated timber (CLT)

  • Solid and laminated wood

  • Laminated veneer lumber (LVL)

  • Wood frame construction

Width x height x depth

222 x 117 x 117 mm

Thickness

2 mm

Number of D 13 mm holes in subcarrier nJ/main carrier nH

4 + 4 PCS

Number of D 5 mm holes in subcarrier nJ + main carrier nH

35 + 35 PCS

Approval

ETA

Product weight (per item)

778.000 g

Material

Steel

Surface

Hot dip galvanized

Weight

800 g

Number of D 5 mm holes

70 PCS

Number of D 7 mm holes

4 PCS

Number of D 13 mm holes

8 PCS

Additional accessory:

Product
Description
Quantity
PU
Price
/PU
ASSY<SUP>®</SUP>plus VG 4 COMBI construction screw Steel zinc plated full thread hexagon head
ASSY®plus VG 4 COMBI construction screw Steel zinc plated full thread hexagon head

SCR-COMBI-WO-VG-RW40-(A3K)-12X160/138

Special full-thread screw with hexagon head and underside shank reinforcement for high-load-bearing metal-wood connections in structural wood construction, which also require small edge and screw clearances, in indoor dry or wet areas
x 50 pcs
ASSY<SUP>®</SUP> 4 JH joist hanger screw Steel zinc plated full thread pan head
ASSY® 4 JH joist hanger screw Steel zinc plated full thread pan head

SCR-PANHD-WO-JOISTHNG-RW20-(A3K)-5X50

Full-thread screw with visually appealing pan head with shank reinforcement mounted on the underside for fastening sheet metal parts and metal connectors in wood in indoor dry or sheltered areas without play
x 250 pcs
ASSY<SUP>®</SUP> 4 JH joist hanger screw Steel zinc plated full thread pan head
ASSY® 4 JH joist hanger screw Steel zinc plated full thread pan head

SCR-PANHD-WO-JOISTHNG-RW20-(A3K)-5X70

Full-thread screw with visually appealing pan head with shank reinforcement mounted on the underside for fastening sheet metal parts and metal connectors in wood in indoor dry or sheltered areas without play
x 250 pcs
Fixanchor W-FAZ/S
Fixanchor W-FAZ/S

ANC-(W-FAZ/S)-(A2K)-20-40-M12X115

Bolt anchor for high loads in cracked and non-cracked concrete. Steel, zinc-plated
x 25 pcs
Concrete screw with hexagon head W-BS/S
Concrete screw with hexagon head W-BS/S

CONCSCR-(W-BS/S)-A2K-WS17-10-45-12X110

Highest loads and efficient installation. Ideal for fastening metal structures, zinc-plated steel
x 25 pcs
Fixanchor W-FAZ PRO/S
Fixanchor W-FAZ PRO/S

ANC-(W-FAZ PRO/S)-(A2K)-10-85-M12X160

High-performance wedge anchor for high loads in cracked and uncracked concrete, zinc-plated steel
x 25 pcs
