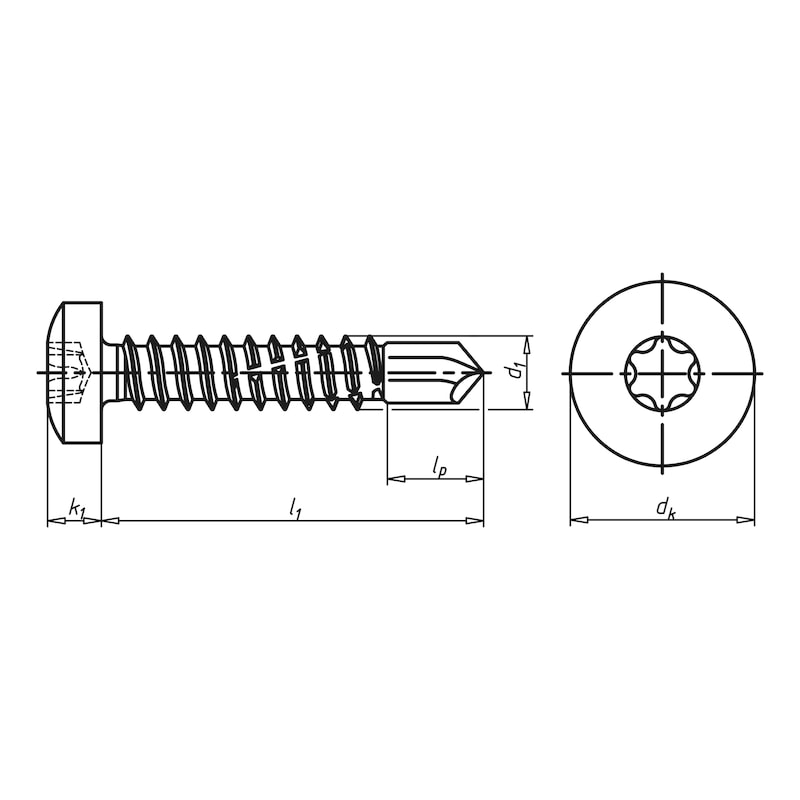

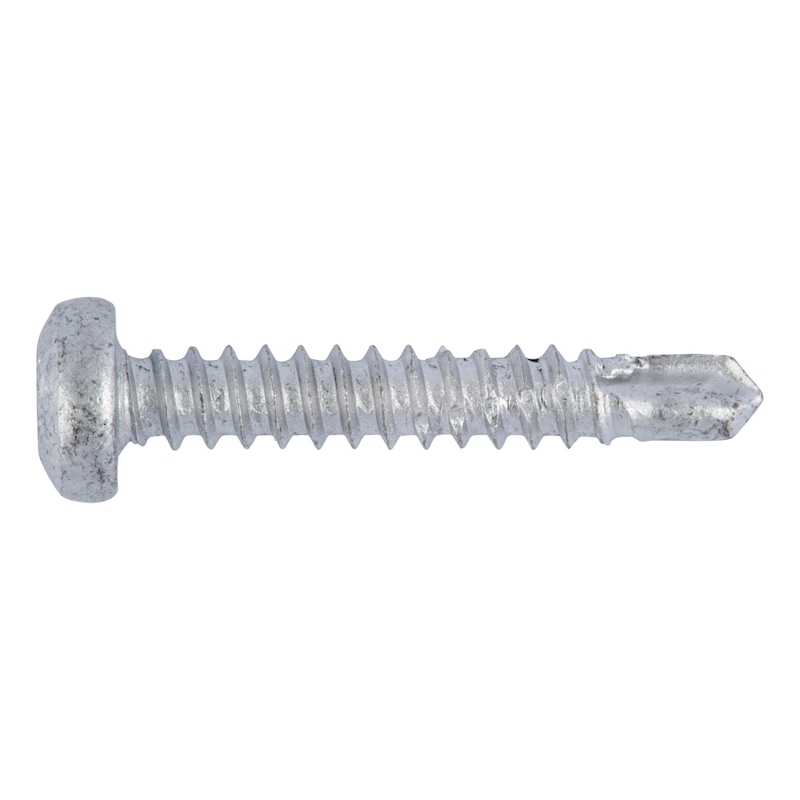

Drilling screw, round head with AW drive piasta<SUP>®</SUP> - SCR-DBIT-PANHD-AW20-(RUS)-4,2X25

Drilling screw, round head with AW drive piasta<SUP>®</SUP> - SCR-DBIT-PANHD-AW20-(RUS)-4,2X25 - 1

Drilling screw, round head with AW drive piasta^®

Name: Drilling screw, round head with AW drive piasta ®
Brand: Würth
SKU: 020684225

piasta stainless steel A2 zinc-flake AW
SCR-DBIT-PANHD-AW20-(RUS)-4,2X25
ZEBRA PIASTA

Art.-no. 020684225

EAN 4045727272336

All versions

Similar products

Price for selected packaging unit

Drilling screw, round head with AW drive piasta^®

Art.-no. 020684225

Price for selected packaging unit

Quantity

x 100 pcs

Exclusively for trade customers

Login/Register
Call customer service: 0800 121 854

A2 stainless steel with drill bit tip and moulded thread made of hardened steel, pan head and AW drive. For fastening steel and aluminium profiles on steel substructures ≤ 3 mm and aluminium ≤ 4 mm

Reduction of the assembly time using the drill bit tip by min. 50%:

Drilling without centrepunching

Thread moulding

Securing

All in one operation

Additional optimum torque transmission by the AW drive

Suitable for component combinations t_I / t_II according to approval ETA-10/0184

Steel/steel for ∅ 4.2 mm and 4.8 mm

Aluminium/steel for ∅ 4.8 mm

Aluminium/aluminium for ∅ 4.8 mm

Product information

Würth Catalogue

Datasheets(X)

CAD data (available after login)

Certificates/ Documents

Additive article:

Product

Description

Quantity

Price
/PU

AW<SUP>®</SUP> C 6.3 bit (1/4 inch) with patented AW tip and colour coding

AW® C 6.3 bit (1/4 inch) with patented AW tip and colour coding

BIT-AW20-LUMINOUSORANGE-1/4IN-L25MM

Art.-no. 06145120

AW® bit

BIT-AW20-LUMINOUSORANGE-5/16IN-L32MM

Art.-no. 06145520

C 8.0 (5/16")

x 5 pcs
