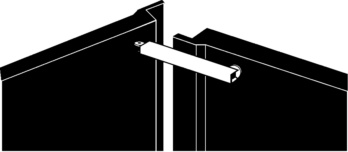

Driver flap MK Basis (panic lock)
Driver flap MK Basis
DRIVFLP-F.CSEQ-(F.MK-BAS1)
Register now and access more than 125,000 products
- The closing sequence selector ensures that the closing sequence of the inactive and active leaf occurs in the specified order, i.e. the active leaf always closes after the inactive leaf
- The function of a closing sequence selector is only ensured when the active leaf is opened to at least a certain angle (stop position)
- If the inactive leaf (full panic) is pressed open first, the driver flap ensures that the active leaf always also opens until it reaches this stop position
Datasheets(X)
 | |
Area of application | Object area, Closing sequence control |
Suitable for | Panic doors |
Suitable for number of doors | 2 |
Mounting option | Hinge side |
DIN direction | DIN R/L |
Type of assembly | Screw-on |
Material | Steel / plastic |
Surface | Zinc plated |
Min./max. length | 289-289 mm |
Environmental Product Declaration | No |
EC declaration of conformity (CE) | No |
| Technical information |
