HSCo slitting milling cutter double cut type H - METCRCLMILMA-WN-HSCO-D125X4,0MM

HSCo slitting milling cutter double cut type H

Name: HSCo slitting milling cutter double cut type H
Brand: Würth
SKU: 5443601252

Slitting milling cutter HSCo Z24-48 10-15° ty. H
METCRCLMILMA-WN-HSCO-D125X4,0MM

Art.-no. 5443601252

EAN 4055375881835

All versions

Similar products

Price for selected packaging unit

HSCo slitting milling cutter double cut type H

Art.-no. 5443601252

Price for selected packaging unit

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service: 0800 121 854

Recommended for milling hard, short-chipping materials such as grey cast iron, brass, bronze and alloyed tool steels.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents


Product code	3224
Material to be processed	Steel, Cast metal, Stainless steel, Titanium, Copper, Brass

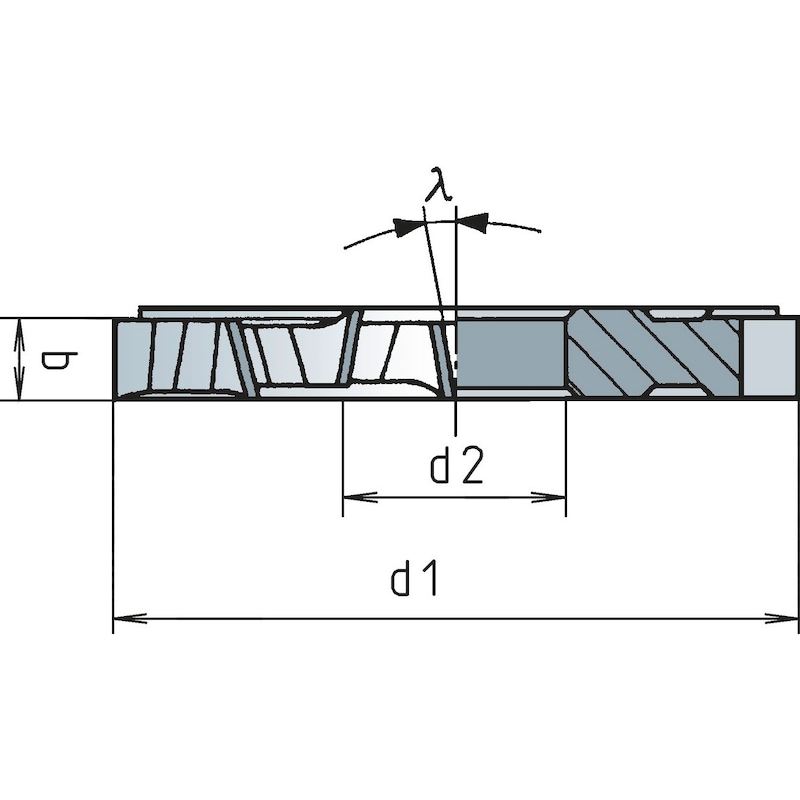

Diameter (d1 (js16))	125 mm
Cutting width (b)	4
Bore diameter (d2 (H7))	32 mm
Number of cutting edges (Z)	40 PCS
Cutting material	HSCo
Twist angle	10-15°
Surface	Plain
Tolerance of cutting edge diameter	js16
Material of sub-group	General structural steels, Non-alloyed tempering steels < 1000 N/mm², Alloyed tempering steels < 1000 N/mm², Nitriding steels < 1300 N/mm², Grey cast iron, Malleable cast iron, Stainless steels < 850 N/mm², Stainless steels > 850 N/mm², Titanium, Titanium alloys, Copper, Brass

Cutting values for finishing contour
For dia. 50 to dia. 160
Material designation	Tensile strength	Cooling	v_c	f_z
				Dia. 50	Dia. 63	Dia. 80	Dia. 100	Dia. 125-160
General structural steels	< 500 N/mm²	E	45	0,035	0,042	0,049	0,056	0,063
General structural steels	500-850 N/mm²	E	38	0,031	0,037	0,043	0,050	0,056
Carbon steels	< 850 N/mm²	E	38	0,025	0,030	0,035	0,040	0,045
Carbon steels	850-1000 N/mm²	E	30	0,025	0,030	0,035	0,040	0,045
Unalloyed heat-treated steels	< 700 N/mm²	E	38	0,025	0,030	0,035	0,040	0,045
	700-850 N/mm²	E	38	0,025	0,030	0,035	0,040	0,045
	850-1000 N/mm²	E	30	0,025	0,030	0,035	0,040	0,045
Alloyed heat-treated steels	850-1000 N/mm²	E	30	0,025	0,030	0,035	0,040	0,045
Alloyed heat-treated steels	1000-1200 N/mm²	E	25	0,028	0,034	0,039	0,045	0,050
Unalloyed case-hardening steels	< 750 N/mm²	E	38	0,025	0,030	0,035	0,040	0,045
Alloyed case-hardening steels	< 1000 N/mm²	E	30	0,025	0,030	0,035	0,040	0,045
Alloyed case-hardening steels	1000-1200 N/mm²	E	25	0,028	0,034	0,039	0,045	0,050
Nitriding steels	< 1000 N/mm²	E	30	0,025	0,030	0,035	0,040	0,045
Nitriding steels	1000-1200 N/mm²	E	25	0,028	0,034	0,039	0,045	0,050
Tool steels	< 850 N/mm²	E	38	0,025	0,030	0,035	0,040	0,045
	850-1100 N/mm²	E	25	0,028	0,034	0,039	0,045	0,050
	1100-1400 N/mm²	E	20	0,028	0,034	0,039	0,045	0,050
High-speed steels	850-1200 N/mm²	E	20	0,028	0,034	0,039	0,045	0,050
Wear-resistant constructional steel	1350 N/mm²	E	15	0,028	0,034	0,039	0,045	0,050
Spring steels	< 1200 N/mm²	E	15	0,028	0,034	0,039	0,045	0,050
Stainless steels, sulphurated	< 700 N/mm²	E	38	0,025	0,030	0,035	0,040	0,045
Stainless steels, austenitic	< 700 N/mm²	E	38	0,025	0,030	0,035	0,040	0,045
Stainless steels, austenitic	< 850 N/mm²	E	30	0,025	0,030	0,035	0,040	0,045
Stainless steels, martensitic	< 1100 N/mm²	E	25	0,028	0,034	0,039	0,045	0,050
Special alloys	< 1200 N/mm²	E	15	0,028	0,034	0,039	0,045	0,050
Cast iron	< 180 HB	-	38	0,025	0,030	0,035	0,040	0,045
Cast iron	> 180 HB	-	30	0,025	0,030	0,035	0,040	0,045
Nodular graphite, malleable iron	> 180 HB	-	30	0,025	0,030	0,035	0,040	0,045
Nodular graphite, malleable iron	> 260 HB	E	25	0,025	0,030	0,035	0,040	0,045
Titanium, titanium alloys	< 850 N/mm²	E	20	0,028	0,034	0,039	0,045	0,050
Copper, low-alloy	< 350 N/mm²	E	120	0,046	0,055	0,064	0,074	0,083
Brass, short-chipping	< 600 N/mm²	-	100	0,046	0,055	0,064	0,074	0,083
Brass, long-chipping	< 600 N/mm²	-	100	0,046	0,055	0,064	0,074	0,083
Bronze, short-chipping	< 600 N/mm²	-	100	0,046	0,055	0,064	0,074	0,083
Bronze, short-chipping	650-850 N/mm²	-	80	0,046	0,055	0,064	0,074	0,083
Bronze, long-chipping	< 850 N/mm²	E	80	0,046	0,055	0,064	0,074	0,083
Bronze, long-chipping	850-1200 N/mm²	E	65	0,050	0,060	0,070	0,080	0,090

Legend
E = emulsion
v_c = cutting speed [m/min]
f_z = feed per tooth [mm/t]
The suggested cutting values are reference values and must be adapted to the respective conditions.
