High-end power LED battery-powered pocket torch WTX4R

Name: High-end power LED battery-powered pocket torch WTX4R
Brand: Würth
SKU: 0827806814

Rechargeable-battery LED torch WTX4R
TRCH-BTRY-WTX4R-LED-800LUMEN

Art.-no. 0827806814

EAN 4065233064447

All versions

Similar products

Price for selected packaging unit

High-end power LED battery-powered pocket torch WTX4R

Art.-no. 0827806814

Price for selected packaging unit

Quantity

x 1 pcs

Exclusively for trade customers

Login/Register
Call customer service: 0800 121 854

3 light modes - Power (800 lumens), Mid Power (250 lumens) and Low Power (100 lumens). Torch can be charged directly or via the charging station

Dirt-resistant, easy-clean magnetic charging system — significantly lower susceptibility to failure

Reflector lens technology for optimum light efficiency

Hard gold-plated contacts provide optimal protection against corrosion

Internal twist-focus mechanism for switching between uniform short-range beam (defocused) and concentrated long-range beam (focused)

High degree of protection (IP67)

Integrated roll protection

Non-slip surface

End cap switch

Charge status/battery level indicator (4 x green LED)

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Application area

Suitable for local visual inspections to DIN EN 13018

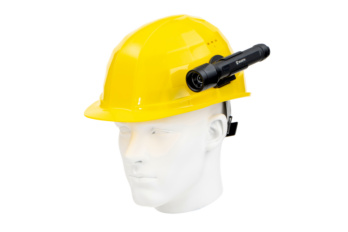

Helmet bracket suitable for helmets with 30-mm Euroslot side mounts

Min./max. luminous flux	100 / 800 lm
Adjustable focus	Yes
Lighting range min./ max.	60 / 220 m
Min./max. luminous period	2-18 h
Charging time	5.5 h
IP protection class	IP 55
IP protection type, lamp	IP 67
IP protection type charger	IP 20
Protection class lamp	Protection class III/safety extra-low voltage
Protection class charger	Protection class II/protective insulation
Type of rechargeable battery/battery	Li-lon
Nominal voltage	3.65 V/DC
Rechargeable battery/battery capacity	2500 mAh
Min./max. charging voltage	100-240 V/AC
Min./max. frequency	50 / 60 Hz
Connection type	USB type A, Magnetic charging
Power-lead length	1200 mm
Min./max. operating temperature	-20 to 40 °C
Charging temperature min./max.	5 to 30 °C
Length x width x height	177 x 38 x 38 mm
Min./max. length	177-177 mm
Material	Aluminium
Plug type	C

Spare parts for this product:

USB-A power supply and magnetic charging cable For rechargeable LED torches and head lamps with magnetic charging system

CHRG-F.TRCH/HDLAMP-USB-MAGN

Art.-no. 0827806850

For rechargeable LED pocket torches and head lamps with magnetic charging system
