Tarmac fixing bolt W-SA A-IG

Name: Tarmac fixing bolt W-SA A-IG
Brand: Würth
SKU: 0901722102

Asphalt screw anchor, W-SA A-IG
ANC-(W-SA A-IG M16)-(DTB)-22X100

Art.-no. 0901722102

EAN 4052703174874

All versions

Price for selected packaging unit

Tarmac fixing bolt W-SA A-IG

Art.-no. 0901722102

Price for selected packaging unit

Quantity

x 20 pcs

Exclusively for trade customers

Login/Register
Call customer service: 0800 121 854

For anchoring in tarmac, to be processed with chemical injection mortar WIT-PE 1000. Design with metric female thread, zinc-plated steel

For anchorages directly in tarmac

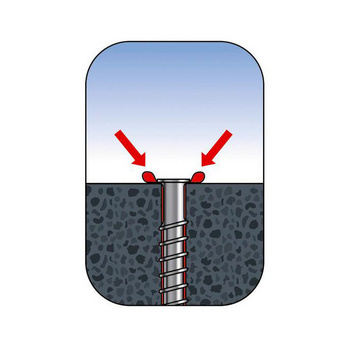

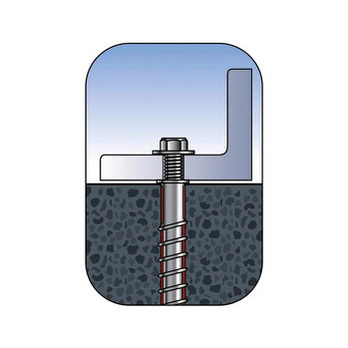

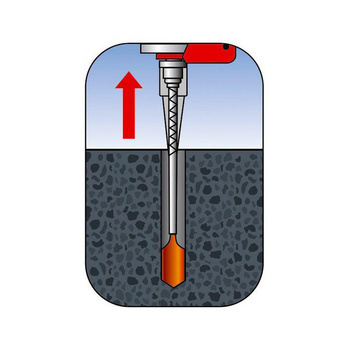

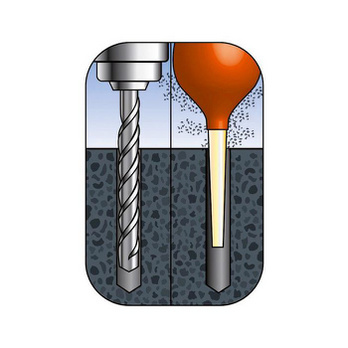

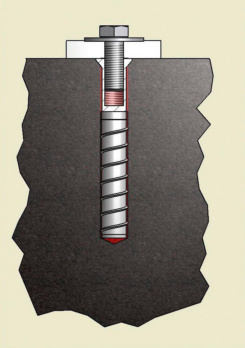

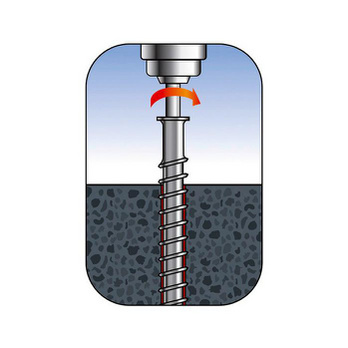

Anchoring by bond between chemical injection mortar WIT-PE 1000, tarmac and tarmac screw anchor as well as mechanical interlock between tarmac and tarmac fixing bolt

With the associated reducer sections, thread size M16 can be reduced to M12 or M10

Removal possible at any time by unscrewing the metric screw

For use with: Chemical injection mortar WIT-PE 1000: Pure epoxy mortar

Application from 0°C to +40°C

Minimum cartridge life: 24 months

Storage temperature between +5°C and +25°C

Notice

Observe the processing instructions for the chemical injection mortar WIT-PE 1000. The tarmac fixing bolt is unsuitable for constant tensile loads.

Product information

Würth Catalogue

Datasheets(X)

CAD data (available after login)

Certificates/ Documents

Application area

W-SA A-IG is used for anchoring in tarmac

Only suitable for constant compressive loads. Not suitable for constant tensile loads. Only apply tensile or shear loads of short duration

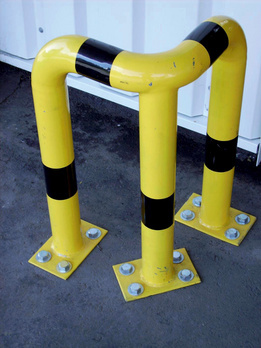

Suitable for attaching bicycle stands, shopping trolley bays, park benches, fences, barriers, signs, notice boards, waste bins, construction site fencing, construction site safety barriers etc.

Anchor diameter	16 mm
Anchor length (l)	100 mm
Female thread	16 mm
Drill hole diameter	22 mm
Drill hole depth (h 1)	110 mm
Embedding depth (h nom)	100 mm
Min. asphalt thickness	150 mm
Required screw length - condition	25 mm + thickness of the add-on part
Head type	Countersunk head
Head diameter (d sk)	30 mm
Drive type	Hexagon socket
Thread diameter	24.6 mm
Internal drive	HS12
Material	Steel
Surface	Flake zinc silver
