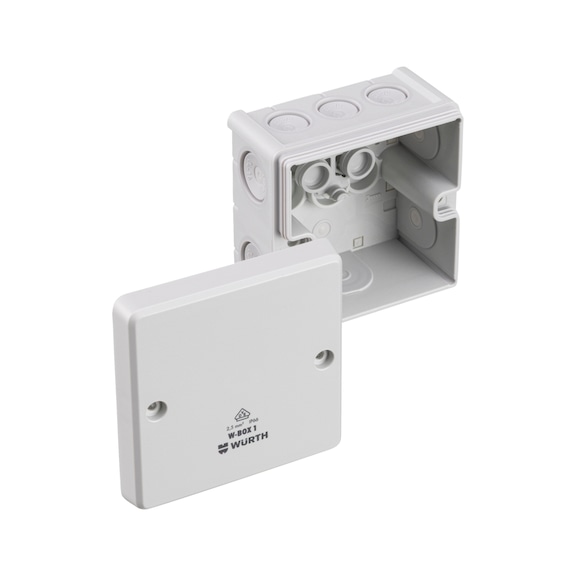

W-BOX VDE cable junction box

JC-VDE-(W-BOX1)-2,5SMM-GRAY-87X87X52MM

Art.-no. 5604011025

EAN 4068362150500

All versions
Price for selected packaging unit
W-BOX VDE cable junction box

Art.-no. 5604011025

Price for selected packaging unit
Quantity
PU
x 3 pcs

Exclusively for trade customers

Register now and access more than 125,000 products

Soft, self-sealing TPE membranes enable quick and simple cable entry
  • IP66 degree of protection for reliable protection against dust and water.

  • Removable TPE membranes for easy installation of cable glands.

  • Large connection space for convenient working.

  • Centre marking for precise alignment of the housing.

  • Impact-resistant and particularly robust housing material.

  • Stainless steel (V2A) cover screws for securely fitting the cover.

  • Resistant to UV radiation and ammonia (DLG-tested).

  • Made in Germany.
Notice

Cover screws torque: 1.2 Nm

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Application area
  • Indoor and protected outdoor areas

  • Agriculture (due to ammonia resistance)

Colour of top section

Grey

Colour of bottom section

Grey

Length x width x height

87 x 87 x 52 mm

Max. cable cross section

2.5 mm²

Design

Empty, Internal fixing points

Number of cable entries

9 PCS

Number of cable entries floor

1 PCS

Min./max. sealing range

4-16 mm

Impact resistance

IK07

IP protection class

IP 66

Protection class

Protection class II/protective insulation

Nominal voltage

1000 V/AC/DC

Material of top section

Polycarbonate - PC

Material of bottom section

Polypropylene/thermoplastic elastomer

Flammability

Self-extinguishing as per UL94 HB

Flame-retardant

750°C

Halogen-free

Yes

Silicone-free

Yes

Ultraviolet resistance

Yes

Min./max. temperature conditions

-25 to 35 °C
