Faster flat-face quick-action coupling FFH BSPP SERIES - FEMALE
QCKCUPL-HYDR-FEM-FFH-DN19-3/4IN-G1IN
Art.-no. 0866999438
EAN 4058794746280
Register now and access more than 125,000 products
- Flat-face couplings with zinc-nickel plating for pressures of 35 MPa. The flat-valve closure system prevents any fluid from leaking or being contaminated. Interchangeable in accordance with ISO 16028
| Operating temperature | Surface treatment | Valve type | Connection/ disconnection | Pressure connection | Material | Interchangeability |
| -25 °C to 100 °C | MATE 1000 (ZnNi) | Flat valve | Push to connect/ sleeve retraction | Not allowed | Steel | • Valcon FF ISO 16028 • Stucchi - FIRG/A • DNP - PLT1/PLT4 • Parker - Fem |
Datasheets(X)
 | |

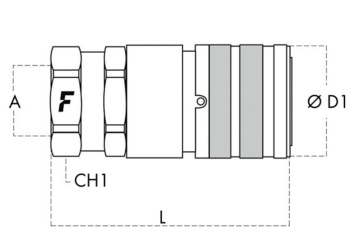

Connection diameter | 48 mm |
Connection thread | G 1 inch |
Body connection size | 3/4 inch / 12 |
Material | Steel |
Product weight (per item) | 800.000 g |
